Photometric data

Vulcan photometric data


1,200mm and 1,500mm lengths
Single: 75mm (W) x 75mm (H)
Twin: 110mm (W) x (75mm (H)


Utilising bespoke led modules, these long-life/low maintenance luminaires are ideally suited for interior and exterior lighting applications where energy efficiency and low maintenance costs are of prime importance.

The VULCAN (VNC) range of IP65 vapour proof LED luminaires provide a low energy, long life alternative to conventional linear fluorescent luminaires. The Vulcan LED luminaire is more tolerant to temperature extremes than fluorescent equivalents and is ideally suited to areas where access would be difficult for regular lamp replacement schedules.

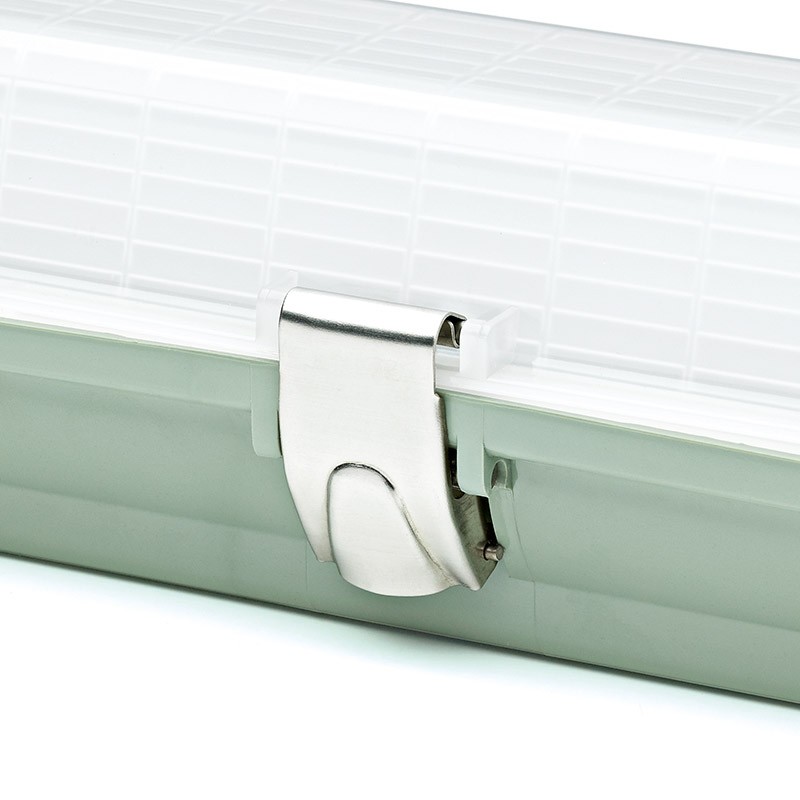

The IP65 rated enclosure is suitable for surface or suspended installation (installation accessories provided). The sealed polycarbonate enclosure utilises stainless steel clips making the complete luminaire ideal for food preparation areas.

The high transmission opal diffuser is optimised for a wide photometric distribution and the VULCAN (VNC) IP65 vapour proof LED luminaires provide excellent general illuminance with very low energy consumption. The luminaire design ensures that the LED lumens are utilised effectively. The life of the LED’s should exceed 50,000 hours continuous use.


  • Ideal for cold store and food preparation areas
  • 22 watt up to 45 watt versions
  • Long life (>50,000 hours)
  • IP65 and suitable for low ambient temperatures
  • Simple installation
  • Polycarbonate enclosure + special opal diffuser
  • Self-contained emergency lighting version


Light source: High Power LED on aluminium heat sink
Emergency version: 3 hour integral
Insulation class: Class 1 – EN60598
Environmental rating: IP65; Ta 25
Maximum weight: 4.0kg


For full details about the Vulcan range, please call us on 01268 415828 or CLICK HERE to send us an email
