HIGH BAY LED LUMINAIRES

VULCAN XTREME

Utilising an extruded aluminium body and high efficiency LED modules, the VULCAN XTREME high output luminaire is ideally suited to high mounting interior and exterior lighting applications.

  • Diffuser optimised for LED technology
  • 1500mm high-output luminaire (>7000 lumens)
  • IP65 and suitable for low ambient temperatures
  • Simple installation; connection via ‘terminal drawer’
  • Extruded aluminium enclosure & polycarbonate opal diffuser

VULCAN XTREME is available with fixed output and DALI mains operation as well as standard and DALI emergency operation.

The VULCAN XTREME luminaire provides a low energy, high output alternative to conventional linear fluorescent luminaires.

The Vulcan Xtreme luminaire utilises a robust aluminium body making it more tolerant to harsh environments than Glass Reinforced Plastic equivalents. It is therefore ideally suited to areas where industrial processes take place but its smart appearance makes it equally suitable for commercial areas, clean rooms and food preparation areas.

HIGH OUTPUT and EFFICIENCY

Heat is diffused very efficiently via the aluminium body. This enables the LED modules to operate at their optimum thereby ensuring maximum light output. This high output (>8300 lumens)* means the Vulcan Xtreme is suitable for high bay usage.

The high transmission opal diffuser is optimised for a wide photometric distribution, providing excellent general illuminance with very low energy consumption.



*Full photometry is available upon request (LDT Files or printed photometric report).

FLEXIBLE INSTALLATION

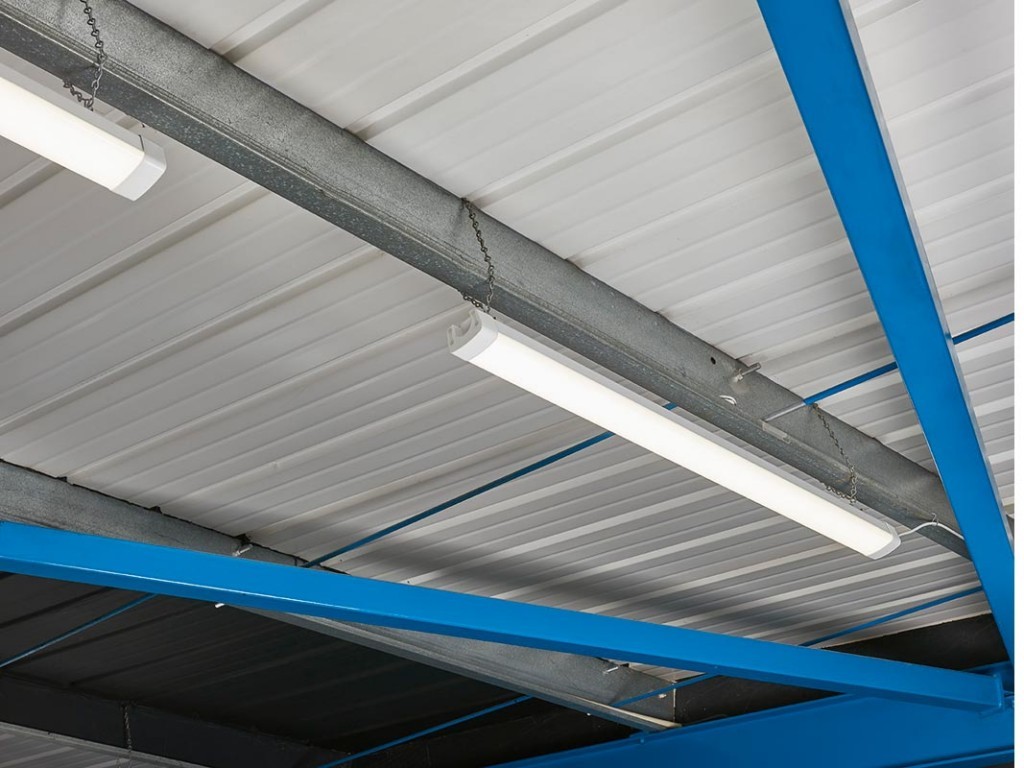

The IP65 rated enclosure is suitable for surface or suspended installation (Mounting and Suspension Kit provided, see below). An optional Wall Bracket provides truly flexible installation, particularly useful in high bay applications.

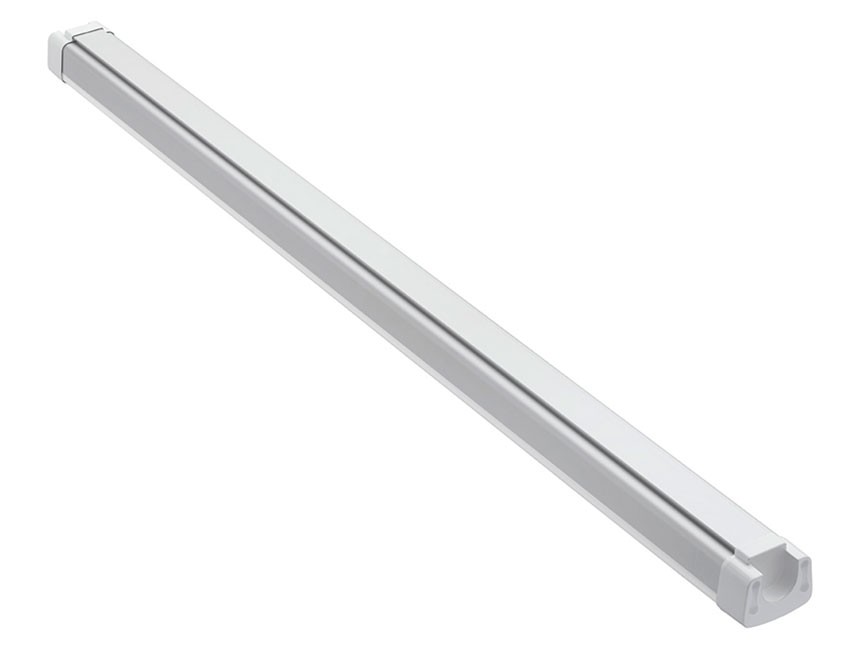

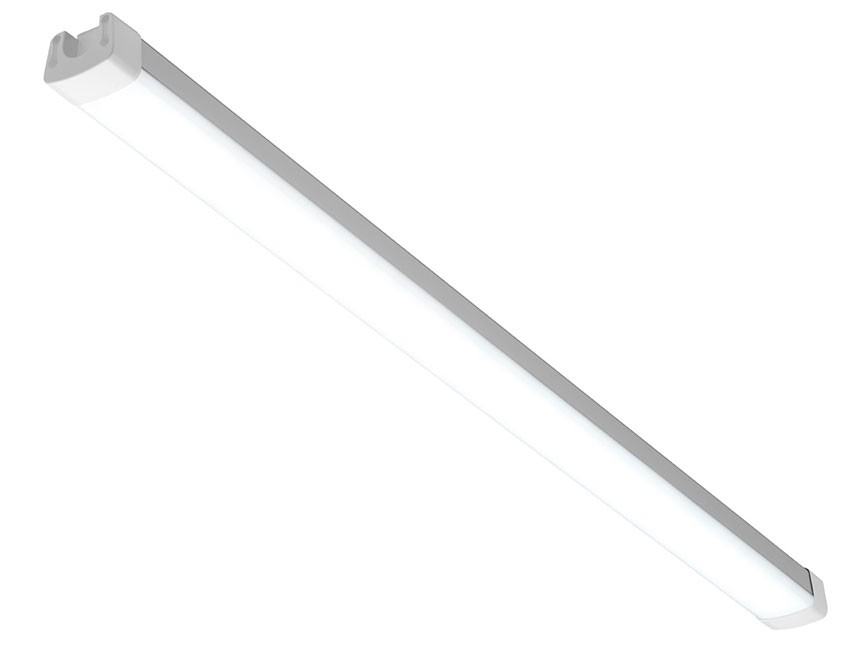

VULCAN XTREME 1500mm LED luminaire
LIGHT SOURCE High power LED on aluminium heat sink
INSULATION CLASS Class 1 - EN60598
ENVIRONMENTAL RATING IP65; Ta25
DIMENSIONS 1500mm (L) x 125mm (W) x 90mm (H)
MAXIMUM WEIGHT 4.0kg

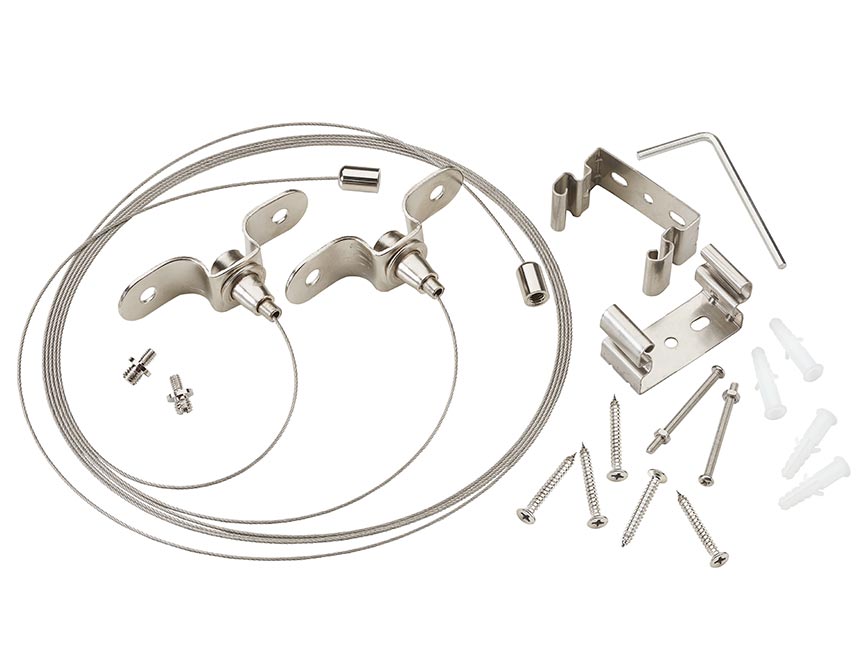

MOUNTING/SUSPENSION KIT

Vulcan Xtreme Suspension Kit

A comprehensive Mounting and Suspension Kit is provided with each Vulcan Xtreme. It allows mounting to, and suspension from, a variety of surfaces.

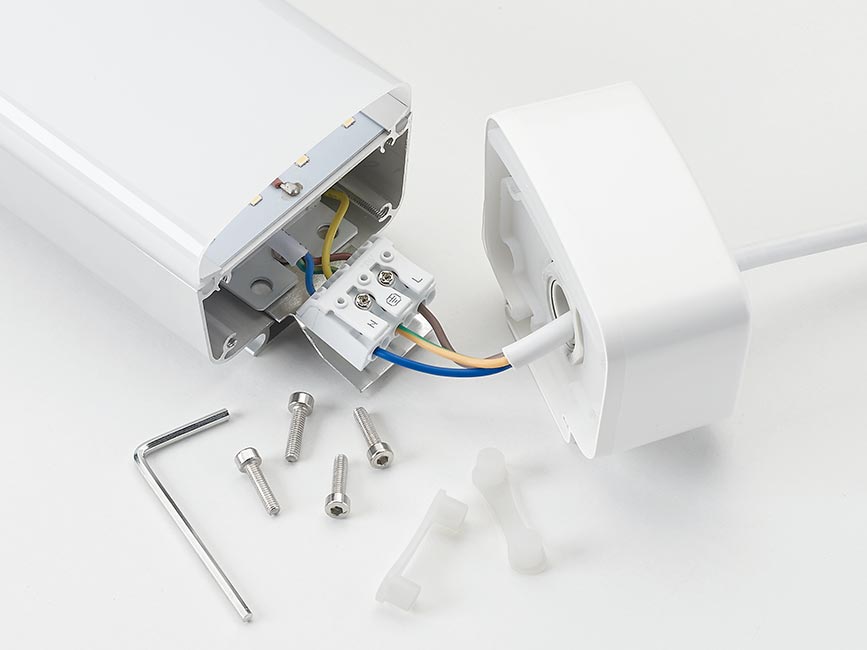

CABLE FITTING

Vulcan Xtreme Cable Fitting

Cable fitting is achieved via a removable end cap and ‘terminal drawer’. This convenient method enables wiring of the Vulcan Xtreme without having to remove the diffuser and geartray.

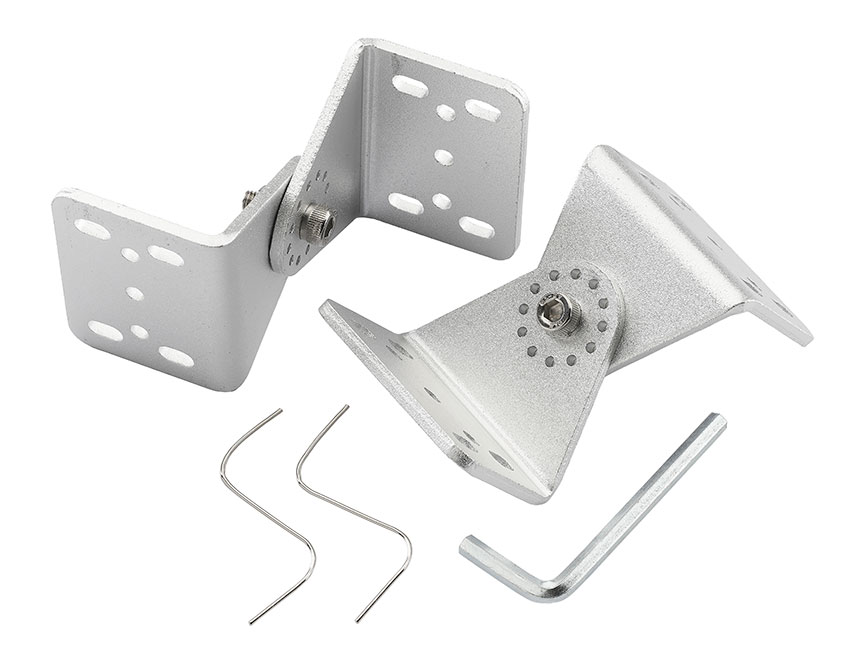

WALL BRACKET

Vulcan Xtreme Wall Bracket

Optional Wall Brackets enable wall mounting across a 180° range. Manufactured from aluminium for durability and corrosion resistance.
