Utilising the latest LED technology, these luminaires are ideal for providing low energy/long life lighting solutions for interior, exterior and amenity applications.
Features
- Cast aluminium and polycarbonate construction (black/opal as standard)
- Attractive and robust design IP65/IK10
- Simple installation
- 19 watt; 1750lm (STD), 1400lm (EYE)
- Emergency Lighting option
- Integral Micro-Wave sensor option

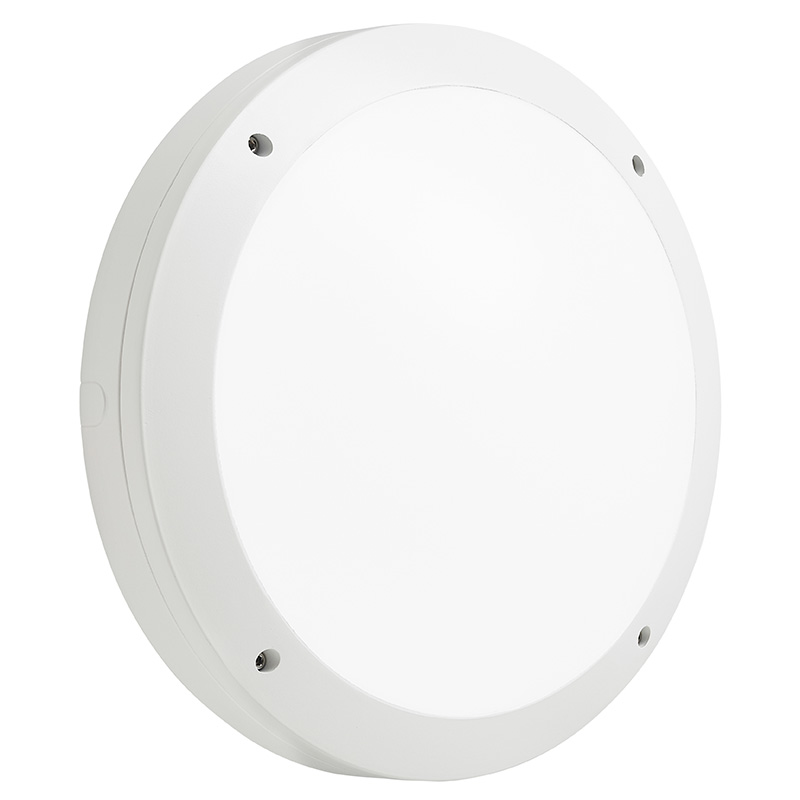

The Amenity MAX luminaire provides an attractive but robust solution for providing lighting to walkways, tunnels, storage areas, car parks etc. The enclosure is sealed to IP65 and houses a geartray with HF electronic driver and multi-circuit LED board.
The polycarbonate lens provide excellent photometric performance (1700 luminaire lumens – STD).
The robust cast aluminium and polycarbonate enclosure is vandal resistant and provides protection to IP65/IK10.
Microwave presence detection versions offer fully adjustable timed operation, ambient light levels and sensitivity (trigger distance).
Suitable for ambient temperatures of up to 35°C (25°C for emergency versions) the units are ideal for interior and exterior environments.
| Light Source | LED (4500K) |
| Driver | High PF Electronic |
| Insulation Class | Class I - EN60598 |
| Environmental Rating | IP65; IK10; Ta 35 |
| Maximum Weight | 3.9kg |
| Part number | Description |
|---|---|
| AMAX/STD/M3/BL | Standard cover; maintained emergency; black body |
| AMAX/STD/P/BL | Standard cover; mains only; black body |
| AMAX/STD/M3D/BL | Standard cover; maintained DALI/SelfTest emergency; black body |
| OPTIONS: | |
| /MW (suffix) | Microwave presence detector |
| /EYE (instead of STD) | 'Eyelid' cover (instead of Standard) |
| /CBD (instead of STD) | 'Crossblade' cover (instead of Standard) |
| /WH (instead of BL) | White body and cover (instead of Black) |
GET IN TOUCH
For full details about the Amenity range, please call us on 01268 415828 or CLICK HERE to send us an email
